Building Your Pit of Success

Practical Strategies for Shiny App Development and Deployment

Umair Durrani

About Me

Umair Durrani

Data Scientist and Shiny Developer at Presage Group Inc.
- Develop apps
- Analyze and present data

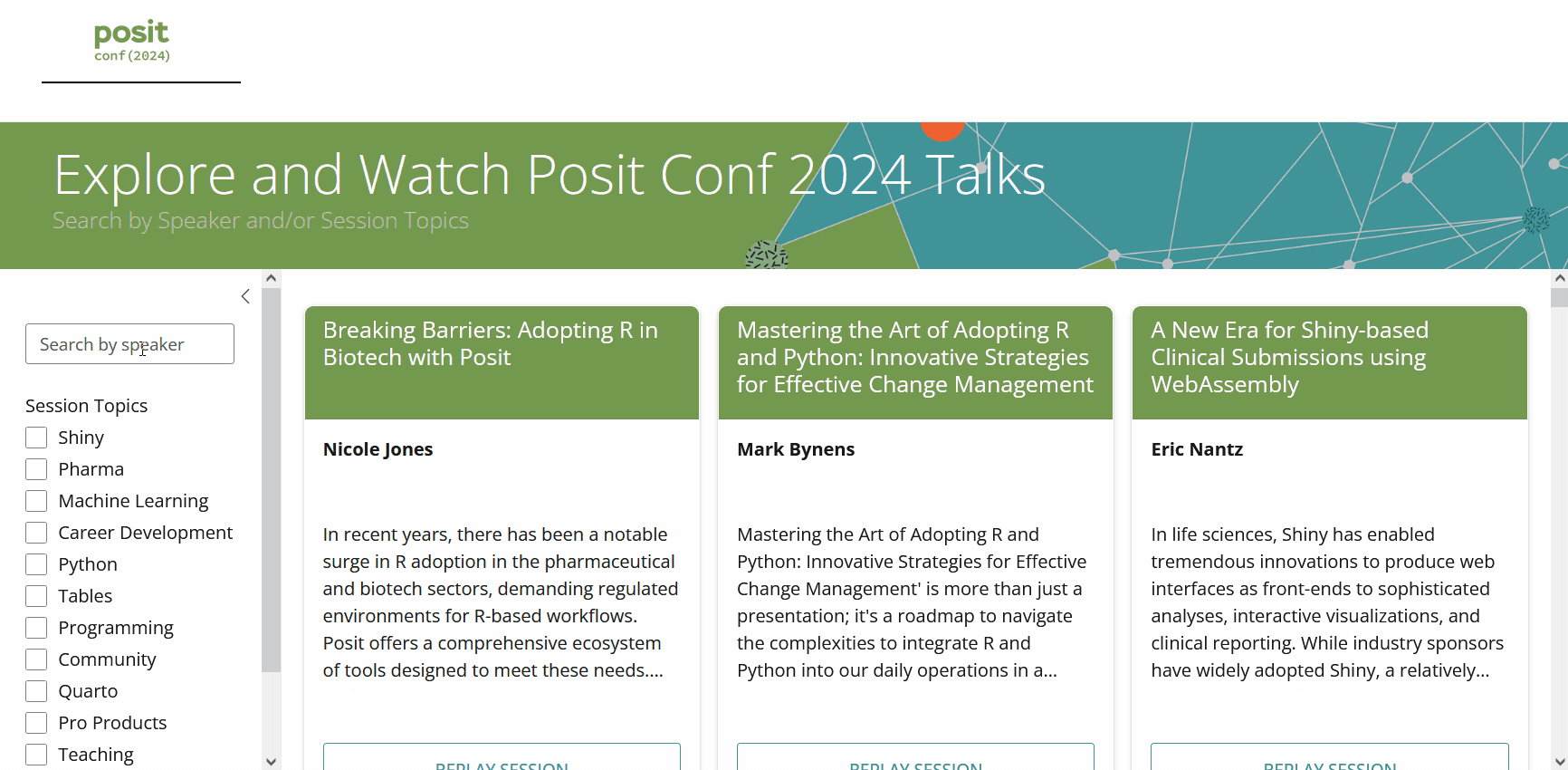

Shiny Meetings

About You

Cat in Flow

Cat is a solitary animal, but its home is devastated by a great flood (IMDB)

New Shiny Developer

You work with data, but now need to create software, i.e., shiny

Practical strategies for development and deployment

Strategies

Creating beautiful app layouts
Write robust code
Monitor your app
Improve user experience
Explore deployment options
Learn and Practice

Demo App

Demo Video

1. Creating Beautiful Layouts

Use AI Tools

Shiny Assistant is trained on Shiny source code
- Available for both Shiny for R and Python

Ploomber AI Editor has more features:
- Provide an image with text instructions
- Download complete project

Both heavily use bslib

Ploomber AI Editor Example

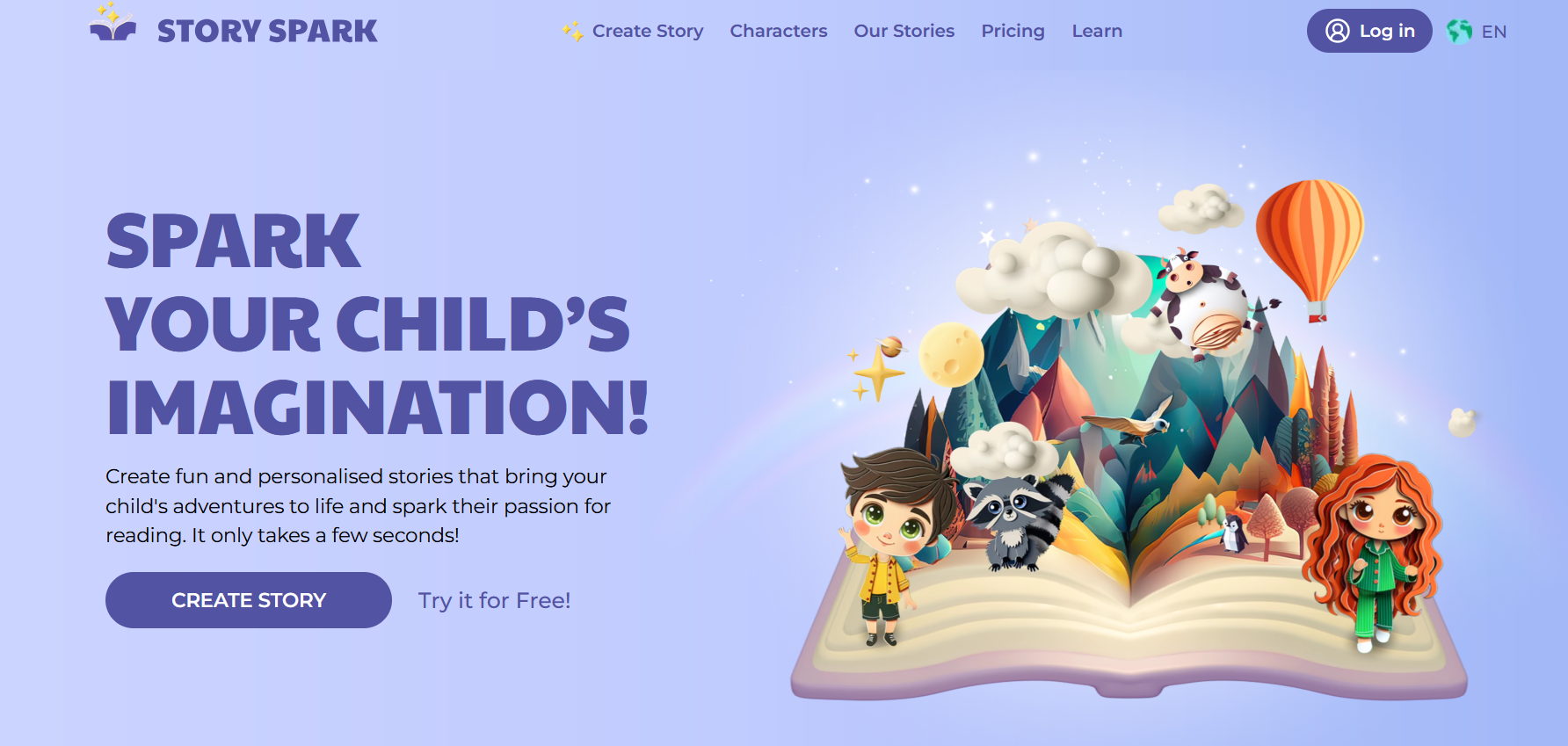

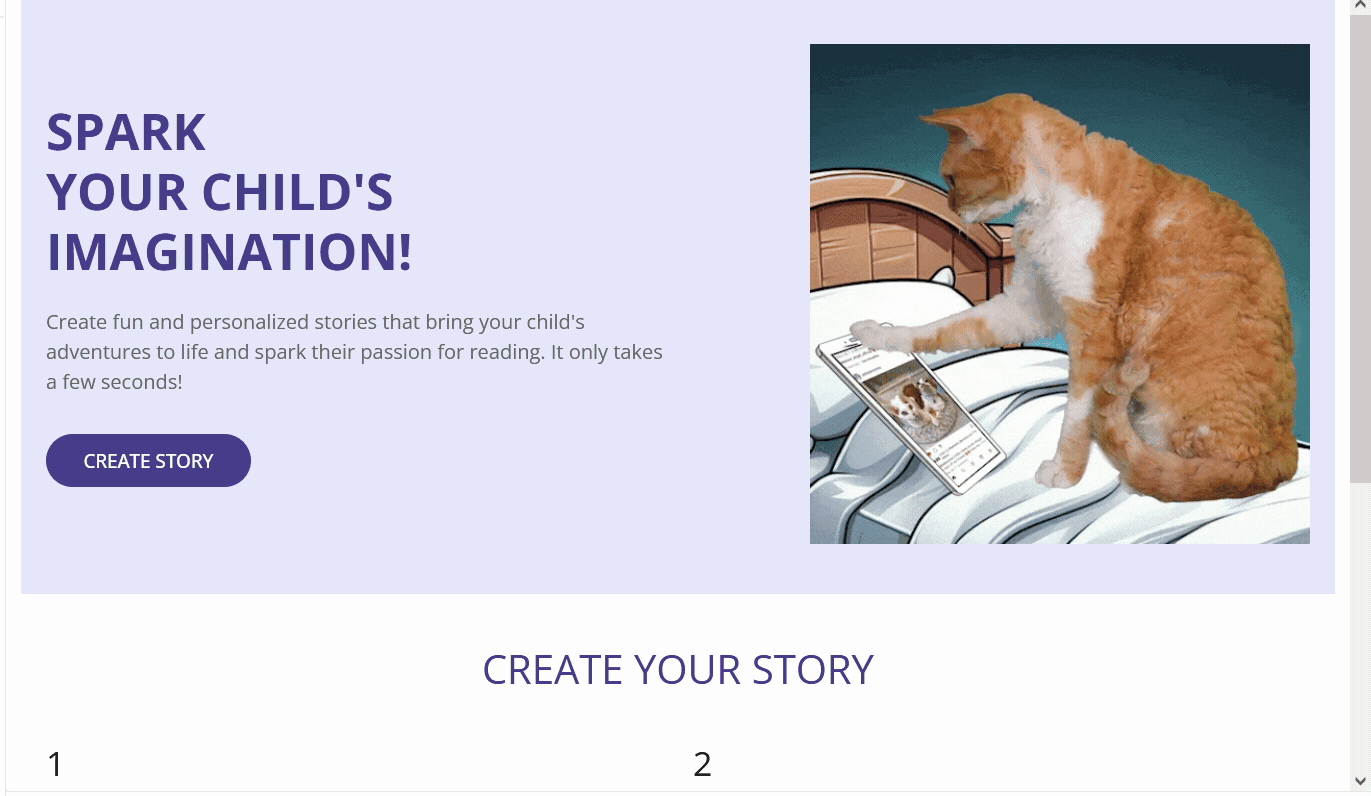

Inspiration

Prompt: Create a shiny app that replicates the user interface in the attached image. Clicking the “create story” button should scroll to the “create your story” section. Skip the “try it for free” link.

Result

Ploomber project link

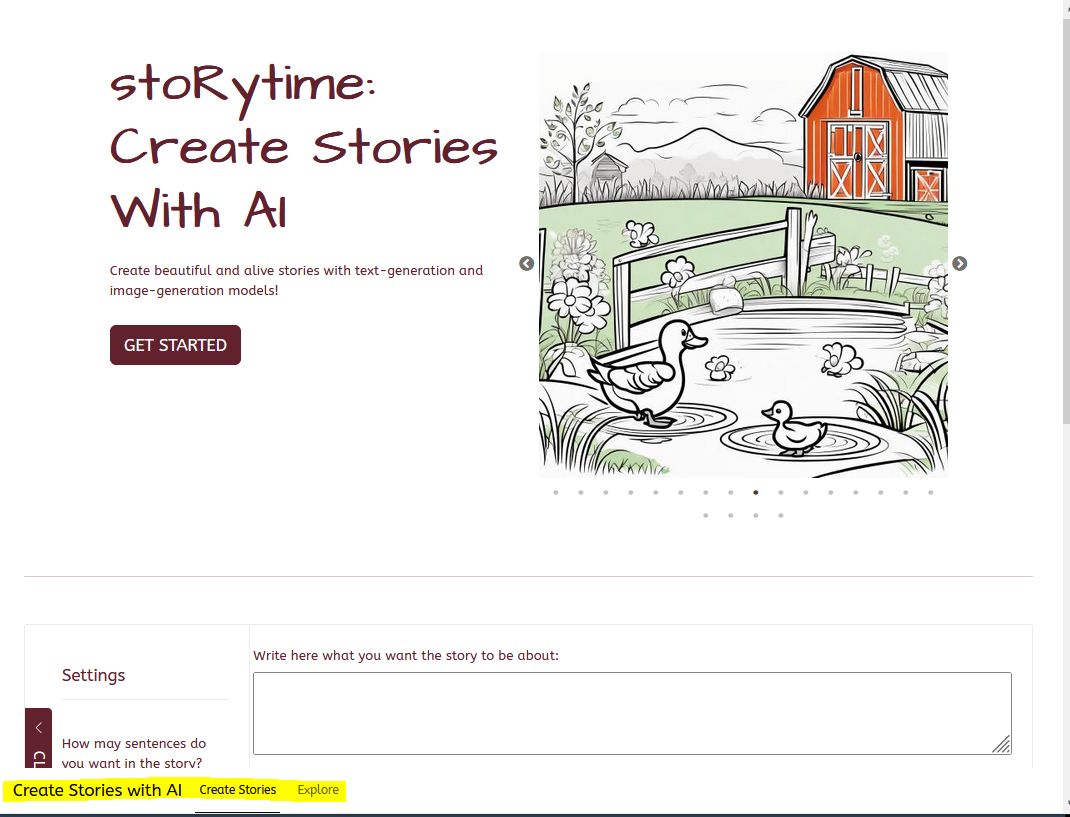

Layout with bslib

bslib::navset_bar in bslib::page_fluid

Layout with bslib

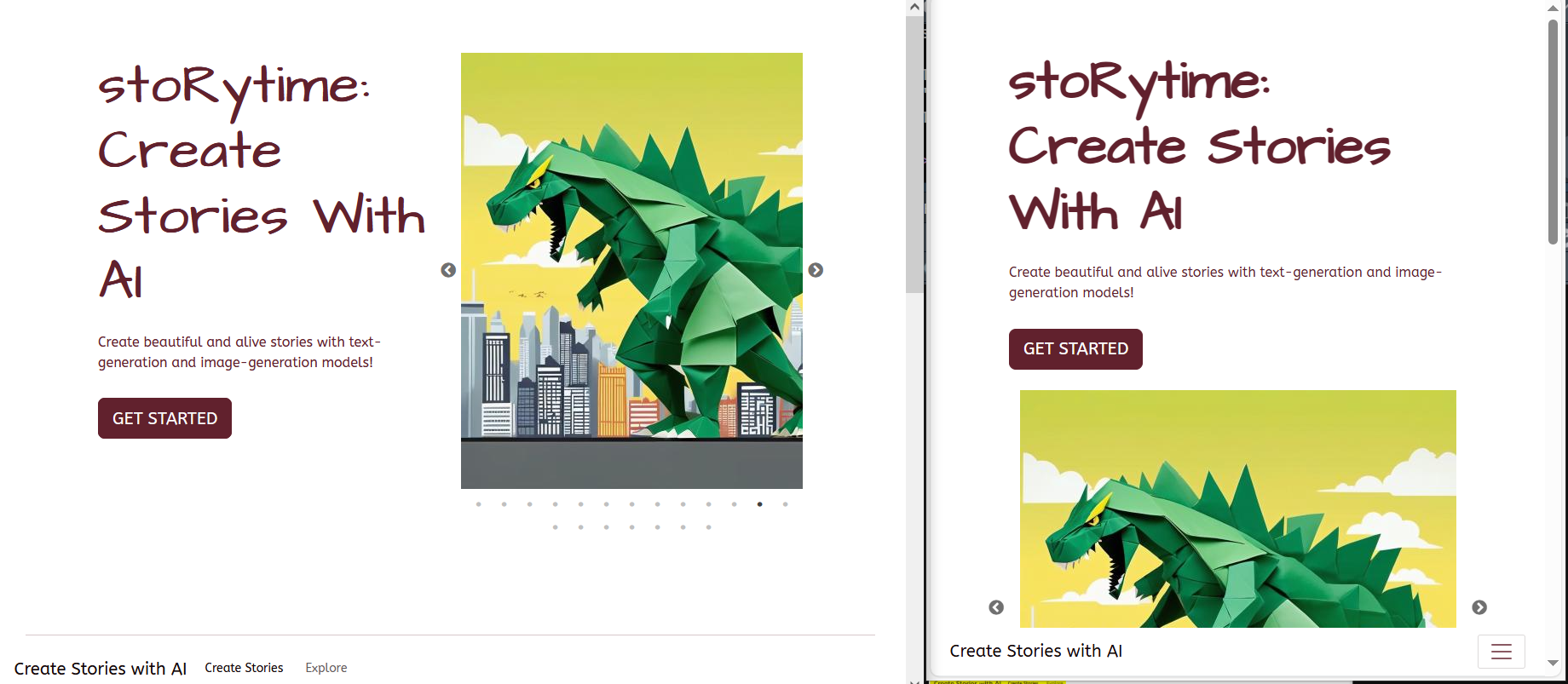

Responsive Design with bslib::layout_columns

brand.yml for theming

Create a _brand.yml file in the root of your directory or in inst in a package based project

meta:
  name: stoRytime
  description: |
    Create beautiful and alive stories with text-generation and image-generation models!

color:
  palette:
    foregroundcolor: "#61212D"
    backgroundcolor: "#ffffff"
    secondarycolor: "#03A9F4"
    infocolor: "#00BCD4"
  foreground: foregroundcolor
  background: backgroundcolor
  primary: foregroundcolor
  secondary: secondarycolor
  info: infocolor

typography:
  fonts:
    - family: ABeeZee
      source: bunny
    - family: Architects Daughter
      source: bunny
    - family: sans-serif
      source: system

  base:
    family: ABeeZee, sans-serif
  headings:
    family: Architects Daughter, sans-serif

Then use it in shiny:

page_fluid(
   theme = bslib::bs_theme(brand = "path_to_brand_yml") # or TRUE
)

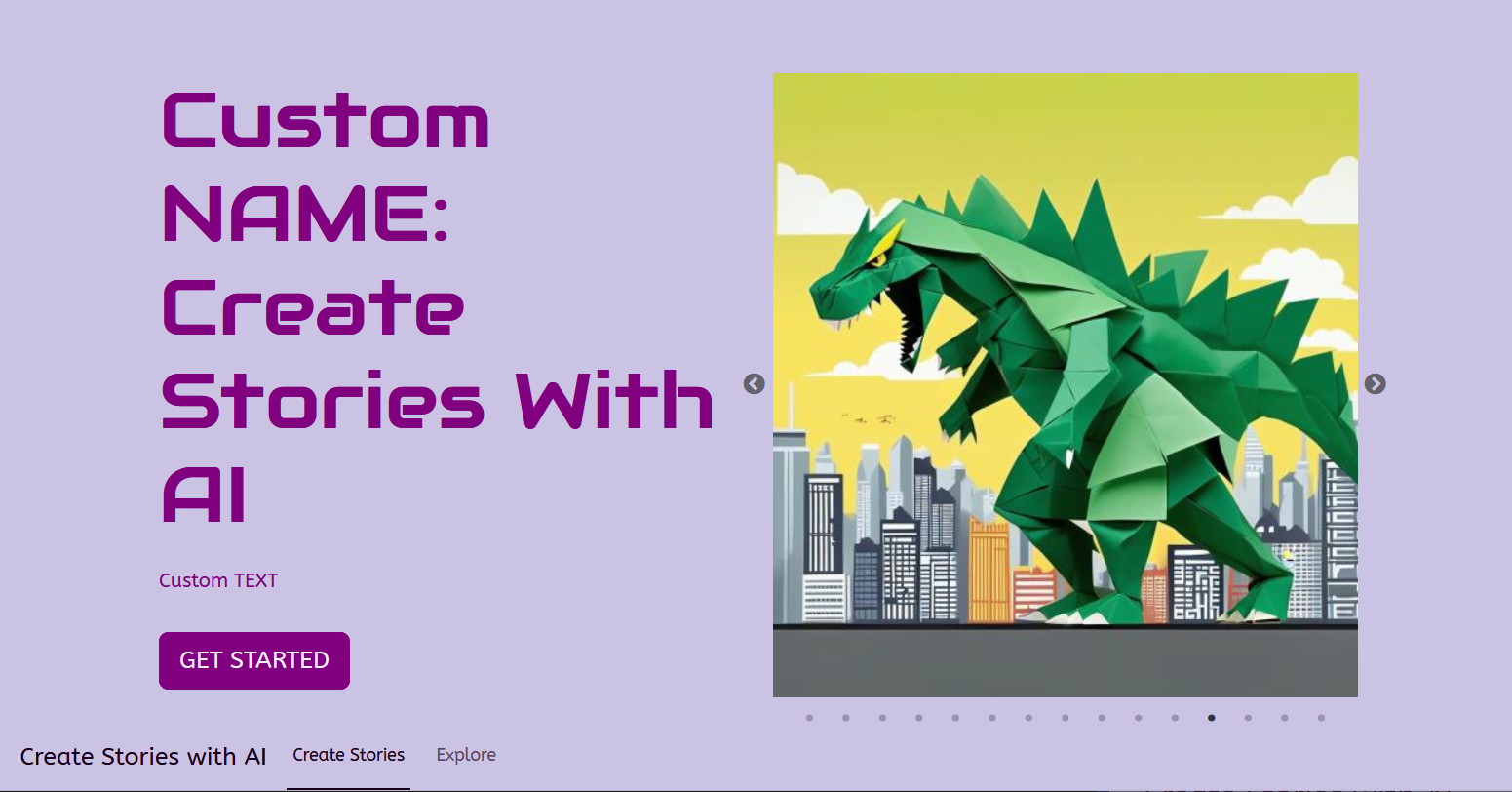

brand.yml for theming

Use name in meta, logos, fonts with plots, etc. For example, in global.R:

theme <- bslib::bs_theme(brand = "path_to_brand_yml")
brand <- attr(theme, "brand")
app_name <- brand$meta$name$short
app_desc <- brand$meta$description

Sass for Customization

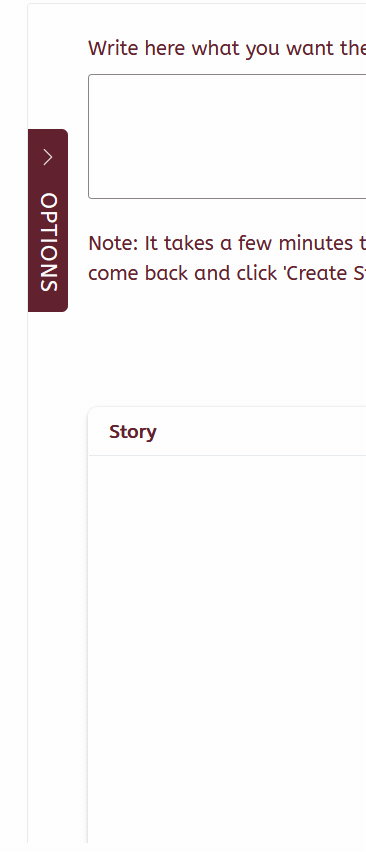

Sass for customizing sidebar button

/* ---------------Sidebar options-------------- */
$sidebar-width: 400px
$sidebar-transition: 0.3s
$toggle-bg: var(--bs-primary)
$toggle-color: white
$toggle-padding: 15px 10px
$toggle-radius: 0 5px 5px 0
$toggle-top: 100px
$toggle-right: -40px


/* -----------------Sidebar------------------- */
@mixin sidebar-toggle
  padding: $toggle-padding
  background-color: $toggle-bg
  position: absolute
  border-radius: $toggle-radius
  writing-mode: vertical-rl
  text-orientation: mixed
  height: auto
  z-index: 1000
  display: flex
  align-items: center
  justify-content: center
  transition: all $sidebar-transition
  top: $toggle-top
  right: $toggle-right

@mixin sidebar-main
  margin-left: $sidebar-width
  transition: margin-left $sidebar-transition
  width: calc(100% - $sidebar-width)

@mixin sidebar-closed
  left: 0
  right: auto

@mixin toggle-icon
  fill: $toggle-color !important
  margin-bottom: 10px

@mixin toggle-text
  color: $toggle-color
  font-size: 1.1em
  text-transform: uppercase
  letter-spacing: 1px
  margin-top: 10px

@mixin sidebar-layout($sidebar-name, $open-text, $closed-text)
  .#{$sidebar-name} .bslib-sidebar-layout
    > .collapse-toggle
      @include sidebar-toggle
      & > .collapse-icon
        @include toggle-icon
      &::after
        @include toggle-text
      &[aria-expanded='true']::after
        content: $open-text
      &[aria-expanded='false']::after
        content: $closed-text
    > .main
      @include sidebar-main
    &:not(.sidebar-open)
      > .collapse-toggle
        @include sidebar-closed
      > .main
        margin-left: 0
        width: 100%
    > .sidebar
      margin-left: 20px

@include sidebar-layout("custom-sidebar", "Close Options", "Options")

2. Write robust code

Functions

Example: Creating the ‘Hero Section’:

create_hero_section <- function(title, subtitle){
  div(
    class = "hero-section",
    layout_columns(
      col_widths = breakpoints(
        sm = c(-1, 10, -1),
        md = c(-1, 5, 5, -1)
      ),
      div(
        h1(title, class = "hero-title"),
        p(subtitle, class = "hero-text"),
        input_task_button("get_started", "GET STARTED", class = "btn-lg", onclick = "scrollToCards()")
      ),
      slickROutput("s")
    )
  )
}

Functions Chapter from Mastering Shiny

Tests

Unit tests, golem, shinytest2
Example: Unit test for get_story function

Function:

get_story <- function(prompt,
                      num_of_sentences = 5,
                      max_tokens = 1000,
                      ACCOUNT_ID = Sys.getenv("ACCOUNT_ID"),
                      API_KEY = Sys.getenv("API_KEY"),
                      base_url = cf_base_url()){

  if (is.null(prompt) | num_of_sentences < 3){
    return(NULL)
  }

  if (test_profanity(prompt)){
    return(NULL)
  }
  url_txt <- paste0(base_url, ACCOUNT_ID, "/ai/run/@cf/meta/llama-3.1-8b-instruct-fast")

  # Make an API request
  response_text <- httr2::request(url_txt) |>
    httr2::req_headers(
      "Authorization" = paste("Bearer", API_KEY)
    ) |>
    httr2::req_body_json("...") |>
    httr2::req_method("POST") |>
    httr2::req_error(is_error = \(resp) FALSE) |>
    httr2::req_perform() |>
    httr2::resp_body_json()

  "<Process and return response>"
}

Unit test with httptest2 and testthat:

with_mock_dir("cfgsp", {
  test_that("get_story returns story when API response is successful", {
    res <- get_story("Snow white opened the door")
    expect_type(res, "character")
  })
})

Testing Chapter from Mastering Shiny

Modules

My Shiny hot take is that modules are not an advanced topic. (Emily Riederer)

Modules avoid clutter and make debugging easier

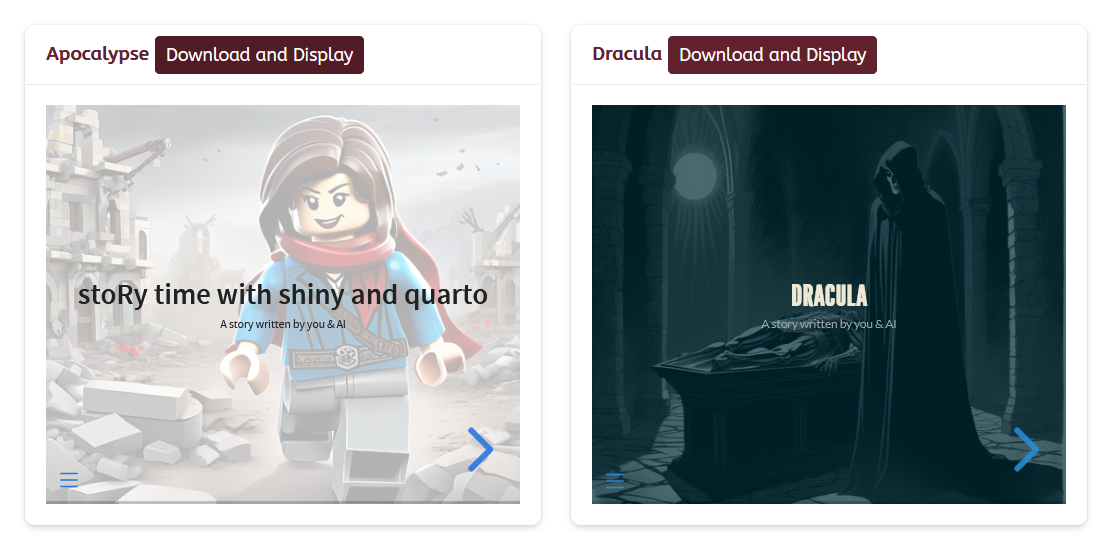

Example: Asynchronous file downloads with ExtendedTask and mirai:

# Module
mod_download_stories_ui <- function(id, title) {
  ns <- NS(id)
  card(
    height = 400,
    full_screen = TRUE,
    card_header(
      title,
      input_task_button(
        ns("downloadBtn"),
        label = "Download and Display",
        class = "btn-sm btn-primary"
      )
    ),
    card_body(
      tags$iframe(
        id = paste0("htmlFrame", id),
        style = "width: 100%; height: 100%; border: none;"
      )
    )
  )
}

mod_download_stories_server <- function(id, title, html_file){
  moduleServer(id, function(input, output, session){
    ns <- session$ns
    base_url <- "https://raw.githubusercontent.com/durraniu/examples-storytime/refs/heads/main/htmls/"

    task <- ExtendedTask$new(
      function(url, download_and_render_html) mirai(download_and_render_html(url), environment())
    ) |> bind_task_button("downloadBtn")

    observeEvent(input$downloadBtn, {
      # Complete URL for this HTML file
      url <- paste0(base_url, html_file)

      # Download the HTML content
      task$invoke(url, download_and_render_html)
    })

    observe({
      html_content <- task$result()

      showNotification(paste0("Rendering ", title, "..."), type = "message", duration = 2)

      # Set the iframe source to display the HTML content
      js_code <- sprintf('
          var iframe = document.getElementById("htmlFrame%s");
          iframe.srcdoc = %s;
        ', id, jsonlite::toJSON(html_content))

      shinyjs::runjs(js_code)
    })
  })
}

Modules

# UI:
layout_column_wrap(
    width = 1/2,
    mod_download_stories_ui("apocalypse", "Apocalypse"),
    mod_download_stories_ui("dracula", "Dracula")
)
# Server:
mod_download_stories_server("apocalypse", "Apocalypse", "apocalypse.html")
mod_download_stories_server("dracula", "Dracula", "dracula.html")

3. Monitor your app for errors

Use `sentryR`

Sentry is an application monitoring software
- sentryR is an unofficial R client for Sentry

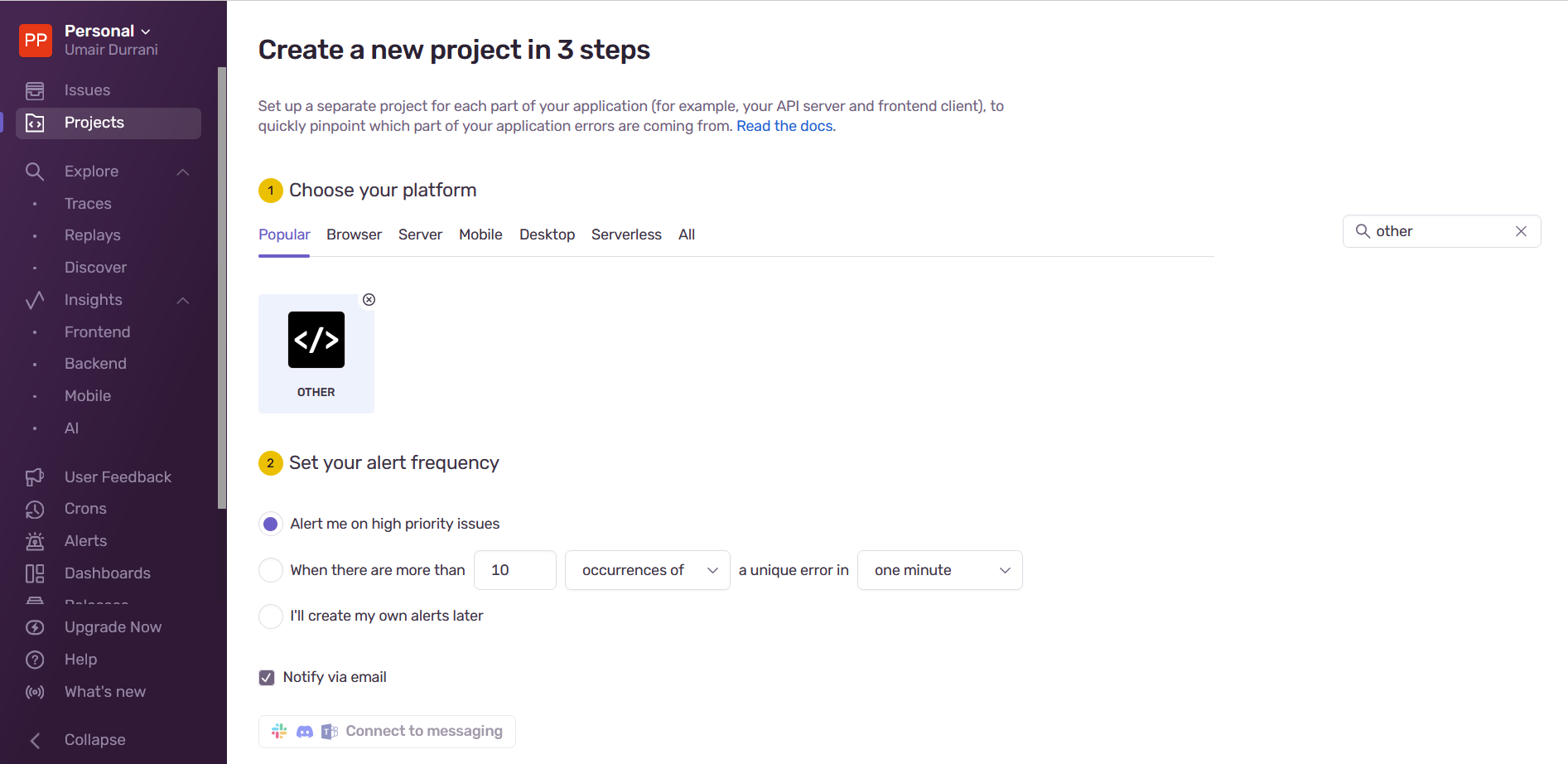

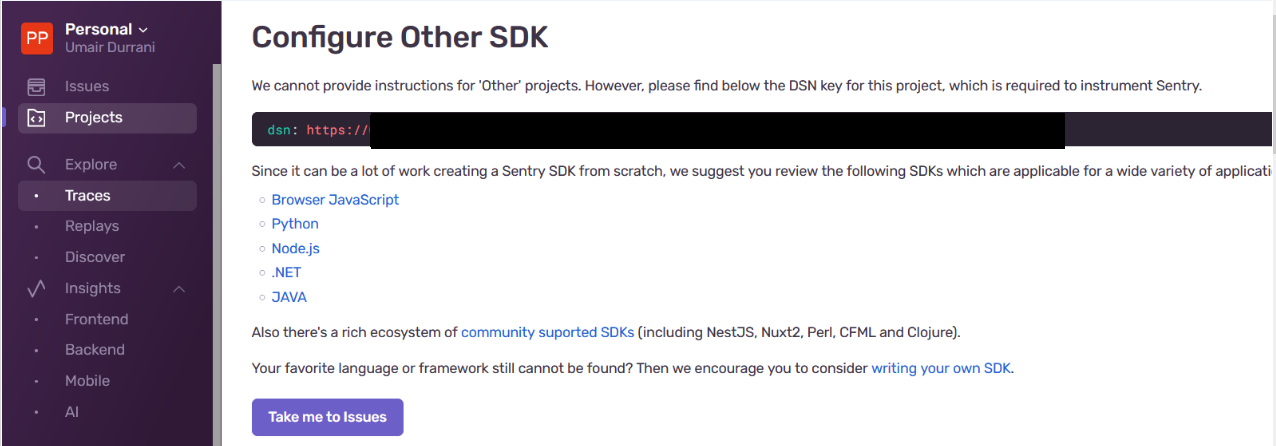

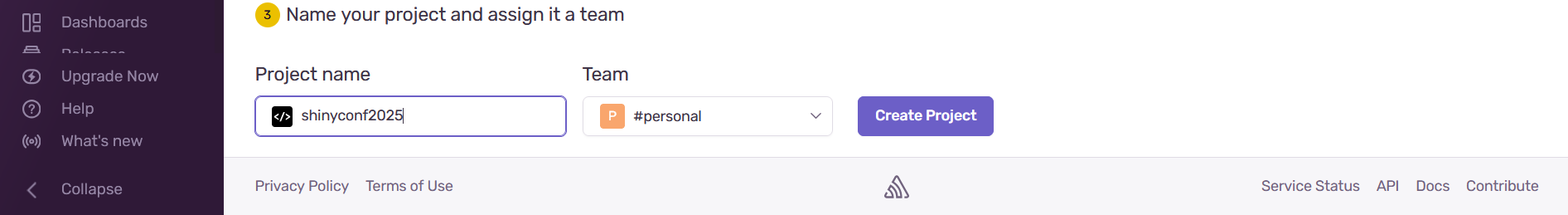

`sentryR` setup

sentryR::configure_sentry(
  dsn = Sys.getenv("SENTRY_KEY"),
  app_name = "stoRytime",
  app_version = "1.0.0"
)

Monitor errors

get_browser_info <- function() {
  user_agent <- session$request$HTTP_USER_AGENT # browser
  remote_addr <- session$request$REMOTE_ADDR # ip

  list(
    user_agent = if (is.null(user_agent)) "Unknown" else user_agent,
    remote_addr = if (is.null(remote_addr)) "Unknown" else remote_addr
  )
}

error_handler <- function() {
  e <- get("e", envir = parent.frame())
  stack_trace <- shiny::printStackTrace(e) |>
    utils::capture.output(type = "message") |>
    list()
  browser <- get_browser_info()

  # Send the original error object with additional context to Sentry
  sentryR::capture(
    message = geterrmessage(),
    extra = list(
      Browser = browser$user_agent,
      IP = browser$remote_addr,
      "Stack trace" =  stack_trace
    )
  )
}

options(shiny.error = error_handler)

Monitor errors

4. Improve user experience

Improve user experience

shiny::useBusyIndicators() or waiter
Async programming with ExtendedTask
Homepage with buttons and guides for complex apps (e.g., cicerone)

5. Explore deployment options

Deployment

Simple and easy, but less flexible/costly: shinyapps.io and Posit Connect Cloud
Hard: Virtual machines on AWS or Google Cloud, etc.

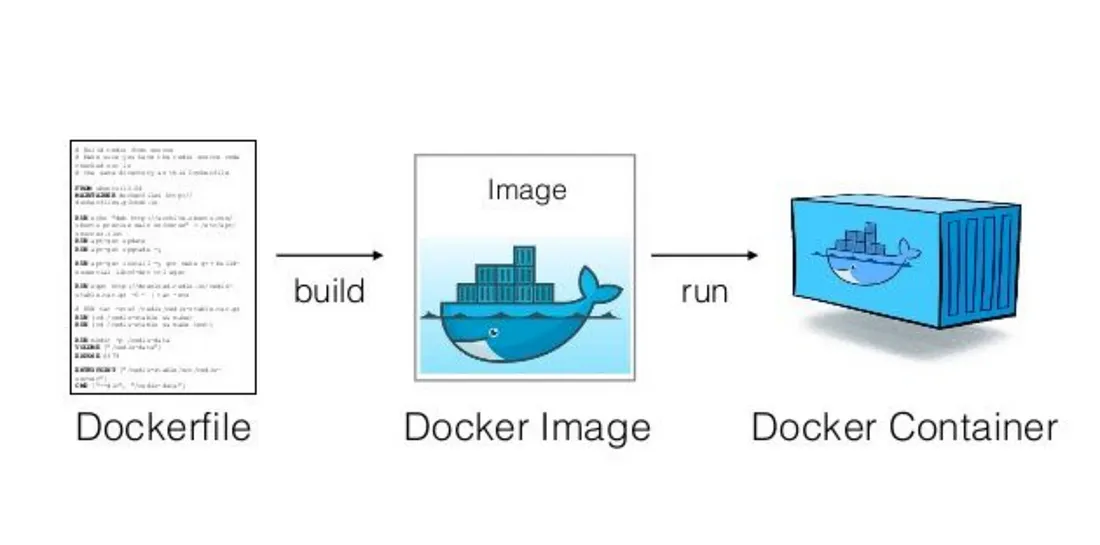

Google Cloud Run (requires docker) –> golem, shinydocker, etc.

Deployment

6. Learn and Practice

Resources

Books
Data Science Learning Community (DSLC)
- shiny club
Shiny Meetings

Community

Using brand_yml: Garrick Aden-Buie
Creating custom sidebar button: Vedha Viyash
http testing: Maëlle Salmon
Logging (shiny::printStackTrace): Tan Ho

Shiny Meetings

Learn and practice together!

Questions

Join Shiny Meetings: https://github.com/shiny-meetings/shiny-meetings
@transport-talk.bsky.social

Demo App

Demo App Source

Slides

Slides Source
